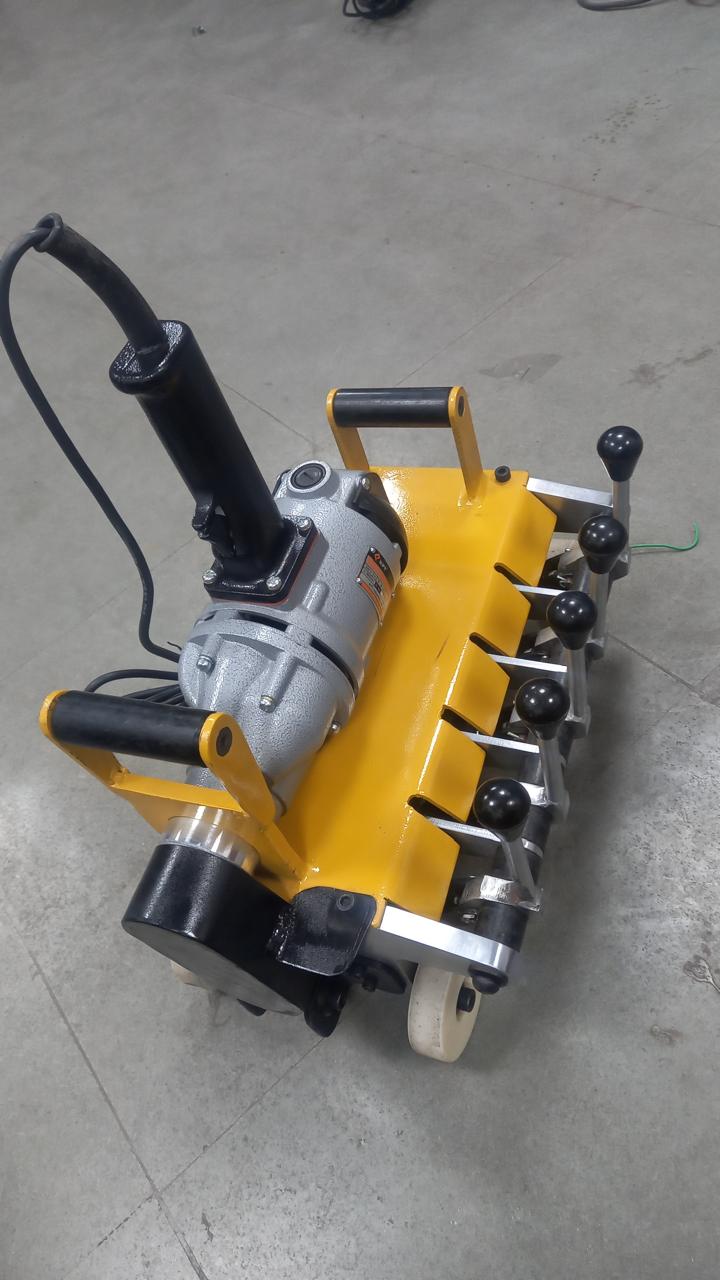

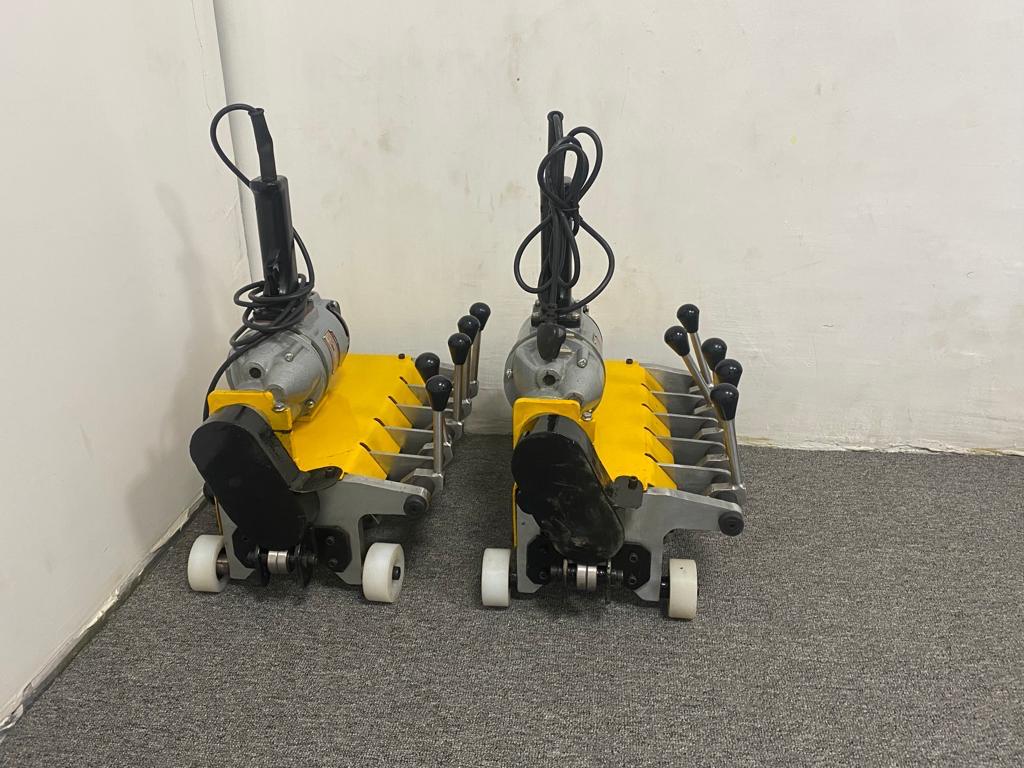

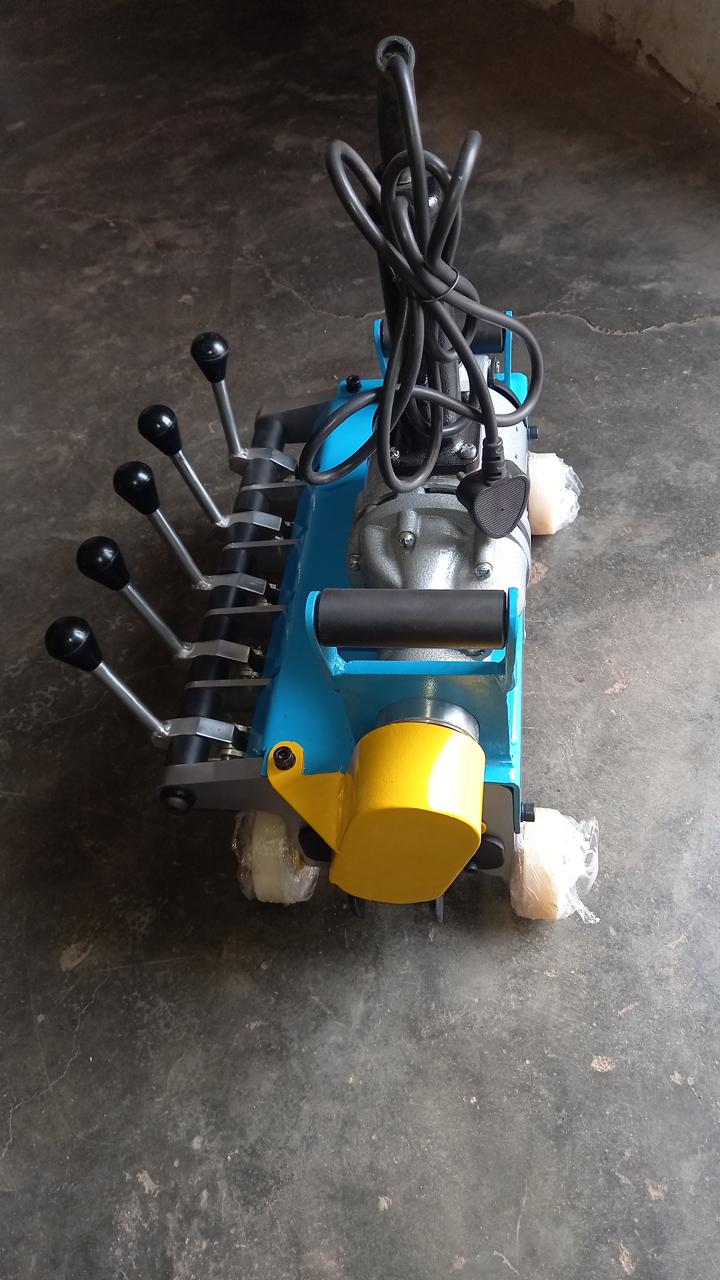

SSR Sheet Seaming Machine
Model No. DE-SSR-SM
Key Features
- Roll Forming or Crimping: Uses rollers or forming dies to shape metal panels and create seams.
- Panel Guides: Ensures proper alignment for straight and consistent seams.
- Seam Adjustment: Customizable seam tightness and profile.
- Drive System: Motor-driven for automated seam creation, some models are self-propelled.
Applications
- Roof Panel Profile: Compatible with various roofing panel profiles.
- Seam Type: Supports different seam types (single lock, double lock, etc.).
- Power Requirements: Designed for on-site power compatibility.
- Maintenance: Regular maintenance ensures long-term performance.
Benefits
- Consistent Seams: Ensures accurate and uniform seaming.
- Watertight Seal: Provides a strong, leak-proof finish.
- Efficient Installation: Speeds up roofing panel assembly.
- Professional Finish: Delivers a clean, high-quality appearance.
Specification
| Sr No | Product & Technical Description | Details |
|---|---|---|
| 1 | Sheet Seaming Machine | 0.2 to 0.8mm |
| 2 | Power | 220 W |
| 3 | Machine Overall Size | L – 0.45m, W – 0.3m, H – 0.3m |
| 4 | Machine Input Power | AC 220V, 50Hz, 1 Phase |
| 5 | Sheet Material | M.S, Galvalume |
| 6 | No. of Rolling Stations | 5 |
| 7 | Roller Material | No. 45 Steel |
| 8 | Repeatability Accuracy | +/- 0.1 mm |
