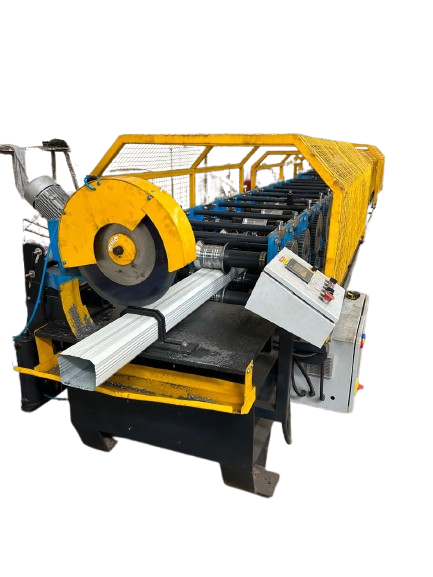

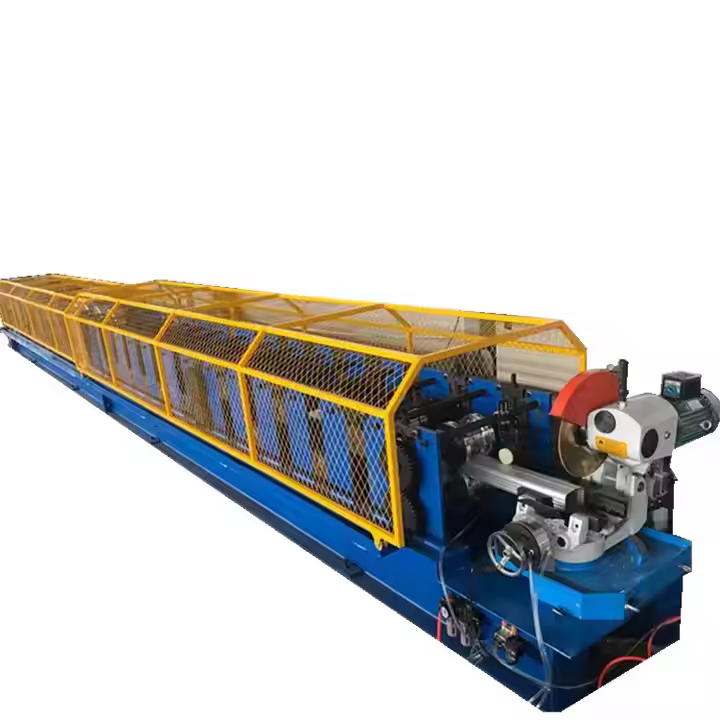

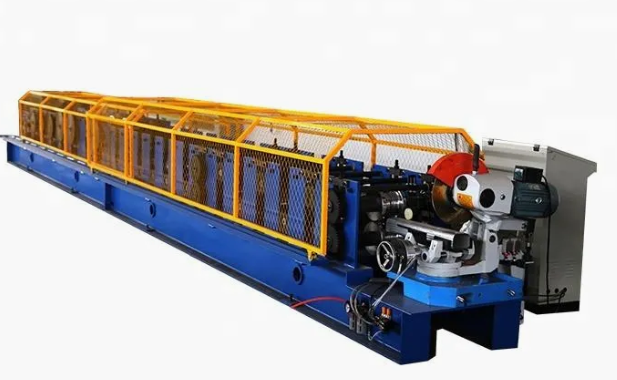

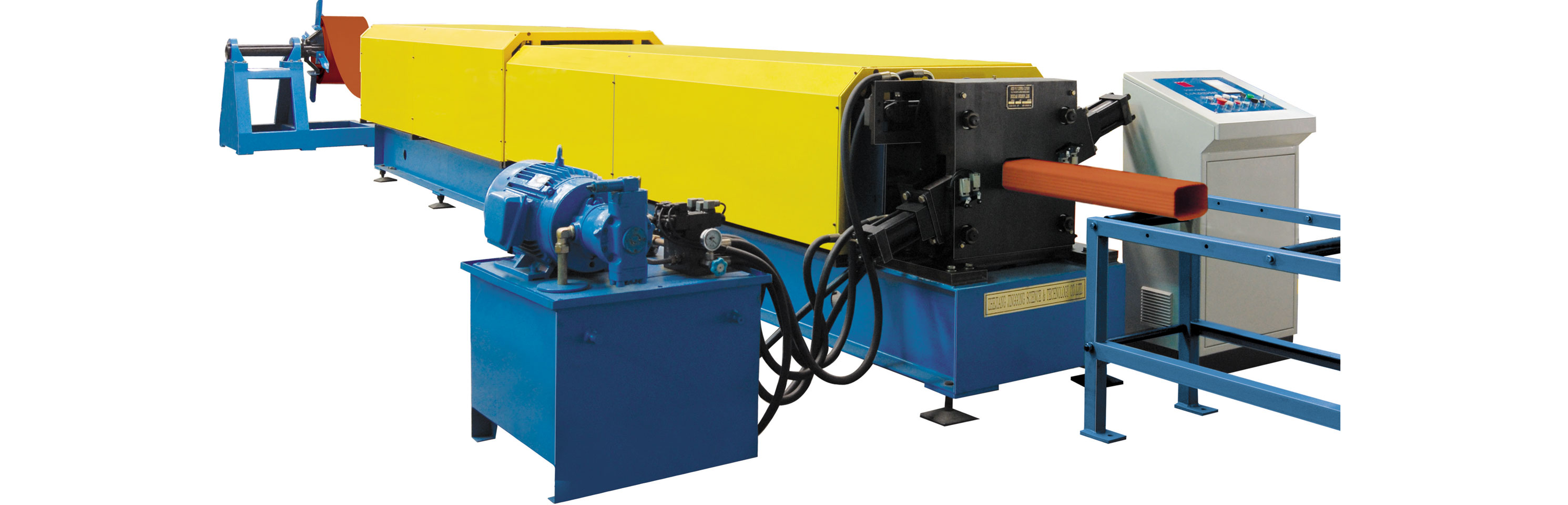

Downspout Pipe Roll Forming M/C.
Model No. DE-DSP-90X130
Key Features
- Material Handling: The machine starts with a coil of sheet metal.

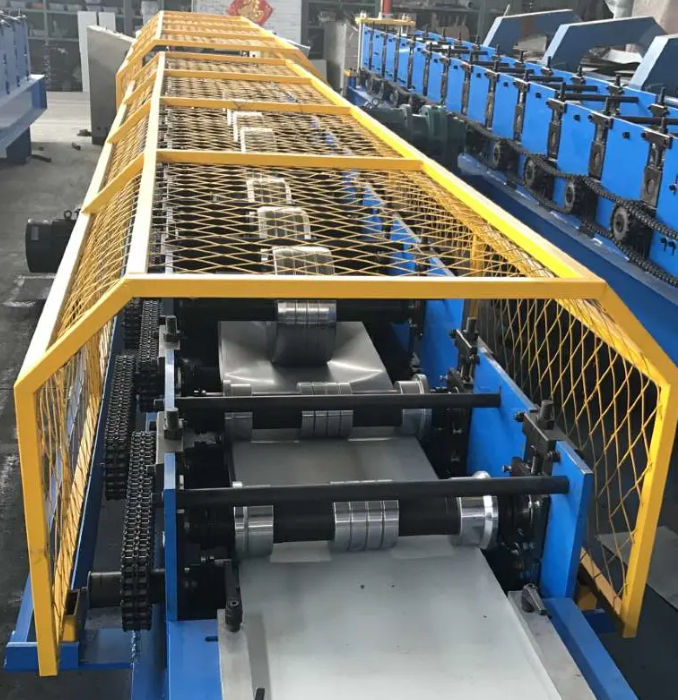

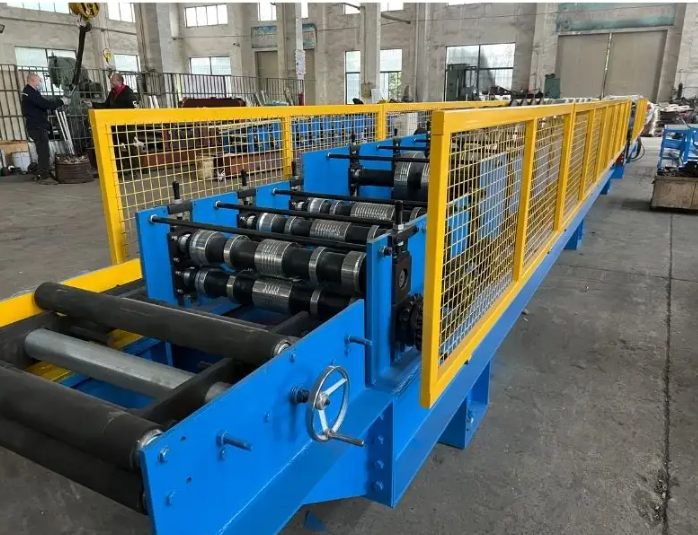

- Roll Forming: Uses rollers to progressively shape the metal sheet.

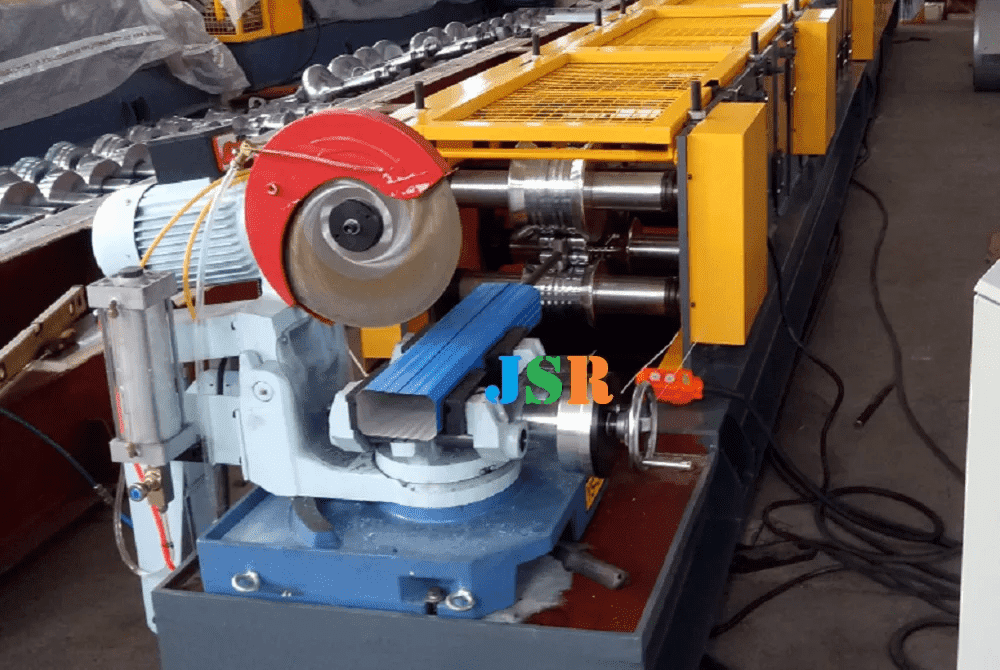

- Cutting: Mechanism to cut the downspout to the desired length.
- Seaming: Option to join the edges of the metal sheet.
- Customization: Adjustable for different sizes and shapes.
Applications
- Efficiency: Produces large quantities quickly and saves labor.
- Accuracy: Ensures consistent and precise dimensions.
- Versatility: Adjustable for different sizes and shapes.
Benefits
- Efficiency: Fast production with minimal labor.
- Accuracy: High-quality, consistent output.
- Versatility: Adaptable to different project needs.
Technical Specifications
| Feature | Specification |
|---|---|
| Plate Thickness Range | 0.3 to 0.8 |
| Power | 7.5 KW |
| Machine overall size | L – 10.5m, W – 1m, H – 1.4m |
| Machine Input Power | AC 440 V (3 Phase) (+/-10%), 50 Hz |
| Sizes specification | 90x130, 100x140, 150x150 |
| Seaming length | UPTO 15MM |
| Panel, HMI & PLC | Make – Delta |
| Repeatability Accuracy | +/- 0.1 mm |
| Material to be punched | Aluminum, Copper, Steel, Zinc and Galvalume Plus |
| Controller | Schneider |
