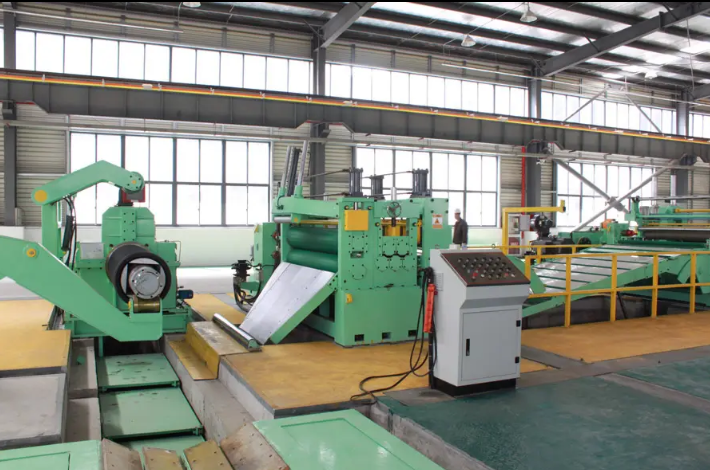

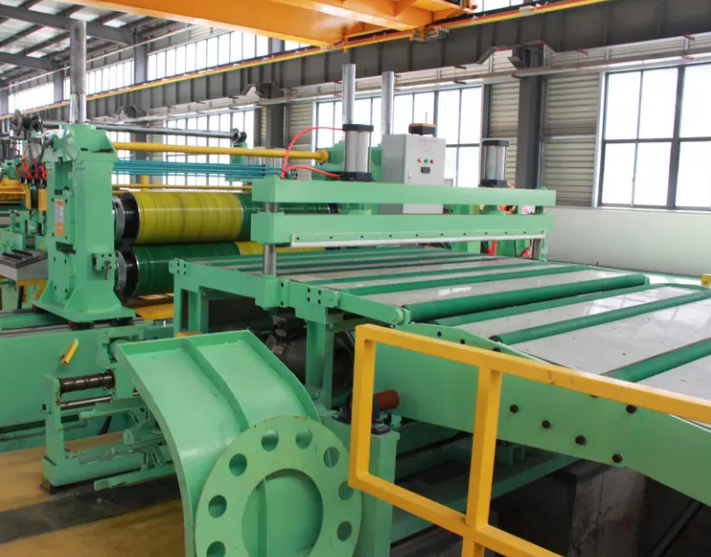

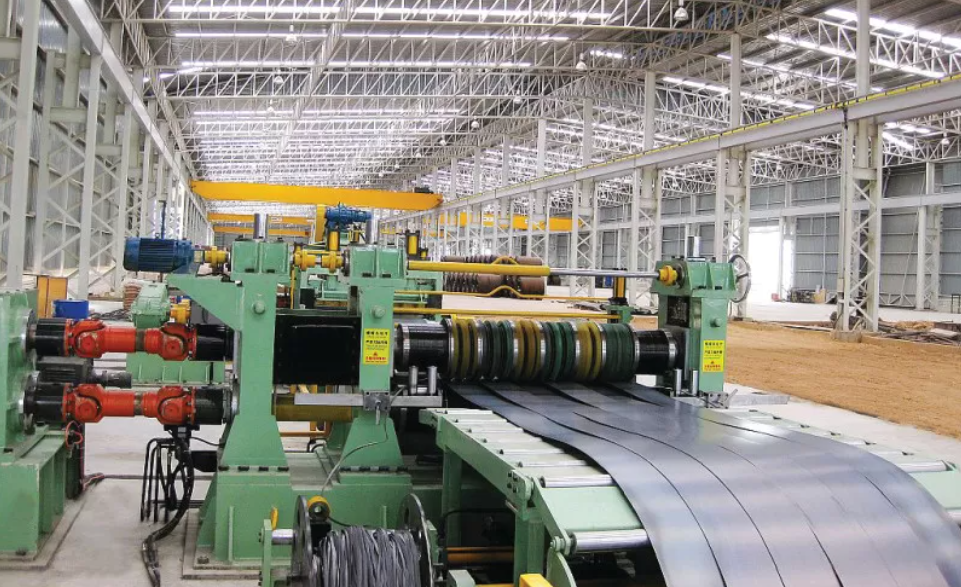

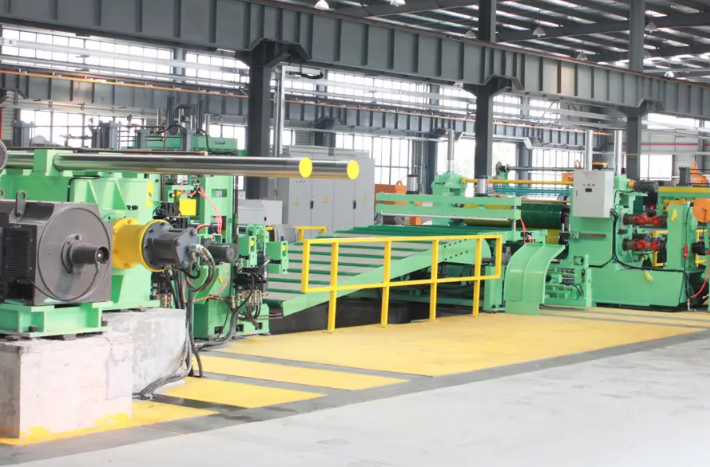

Slitting Machine
Model No. DE-SLT-1220
Key Features
- Unwind Stand: Holds the large jumbo roll of material and ensures smooth unwinding with controlled tension.

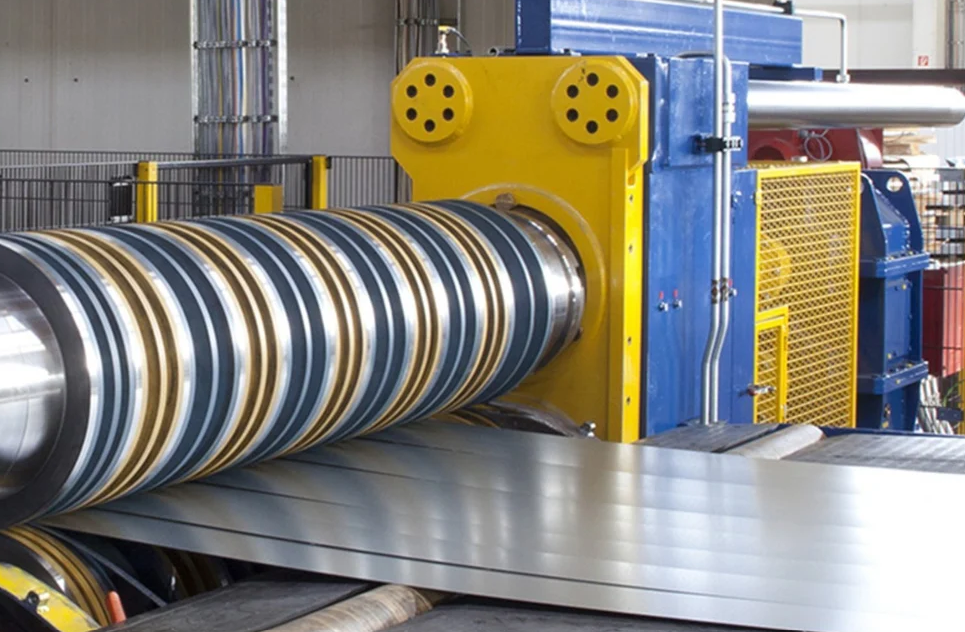

- Slitting Section: The main cutting area, consisting of
- Blades: Different blade types for various materials:
- Razor blades: For thin materials like films and papers.
- Rotary shear blades: For thicker materials like paper, films, and foils.
- Crush cut blades: For thick or tough materials like non-wovens and foams.
- Blade Positioning System: Enables precise blade spacing for desired slit widths.
- Rewind Section: Winds the slit material into narrower rolls with:
- Differential rewind shafts: Ensure even tension across all slit rolls.
- Automatic tension control: Maintains consistent tension to prevent wrinkles or misalignment.
Applications
- Paper Industry: Cutting large rolls of paper into smaller rolls for printing, packaging, and other uses.
- Film Industry: Slitting plastic films for packaging, labels, and other applications.
- Textile Industry: Slitting fabrics or non-woven materials.
- Packaging Industry: Producing tapes, labels, shrink wraps, and other packaging materials.
- Converting Industry: Transforming raw materials into finished products through slitting, rewinding, and printing.
Benefits
- Efficiency: Enables the conversion of large rolls into smaller, more manageable sizes.
- Precision: Provides accurate and consistent slitting widths for high-quality output.
- Versatility: Can handle a variety of materials and be customized for specific needs.
- Automation: Modern features enhance productivity and reduce manual labor.
Specification
| Sr No | Product & Technical Description | Details |
|---|---|---|
| 1 | Sheet Thickness Range | 0.5 to 1 mm |
| 2 | Power | 7 KW |
| 3 | Machine Overall Size | L – 2.5m, W – 1.8m, H – 1.5m |
| 4 | Machine Input Power | AC 440 V (3 Phase) (+/-10%), 50 Hz |
| 5 | Strip Width | 1220 MAX |
| 6 | Slitting Speed | 60m/Min. |
| 7 | Panel, HMI & PLC | Make – Delta |
| 8 | Repeatability Accuracy | +/- 0.1 mm |
| 9 | Material to be Punched | Mild Steel |
| 10 | Controller | Schneider |
