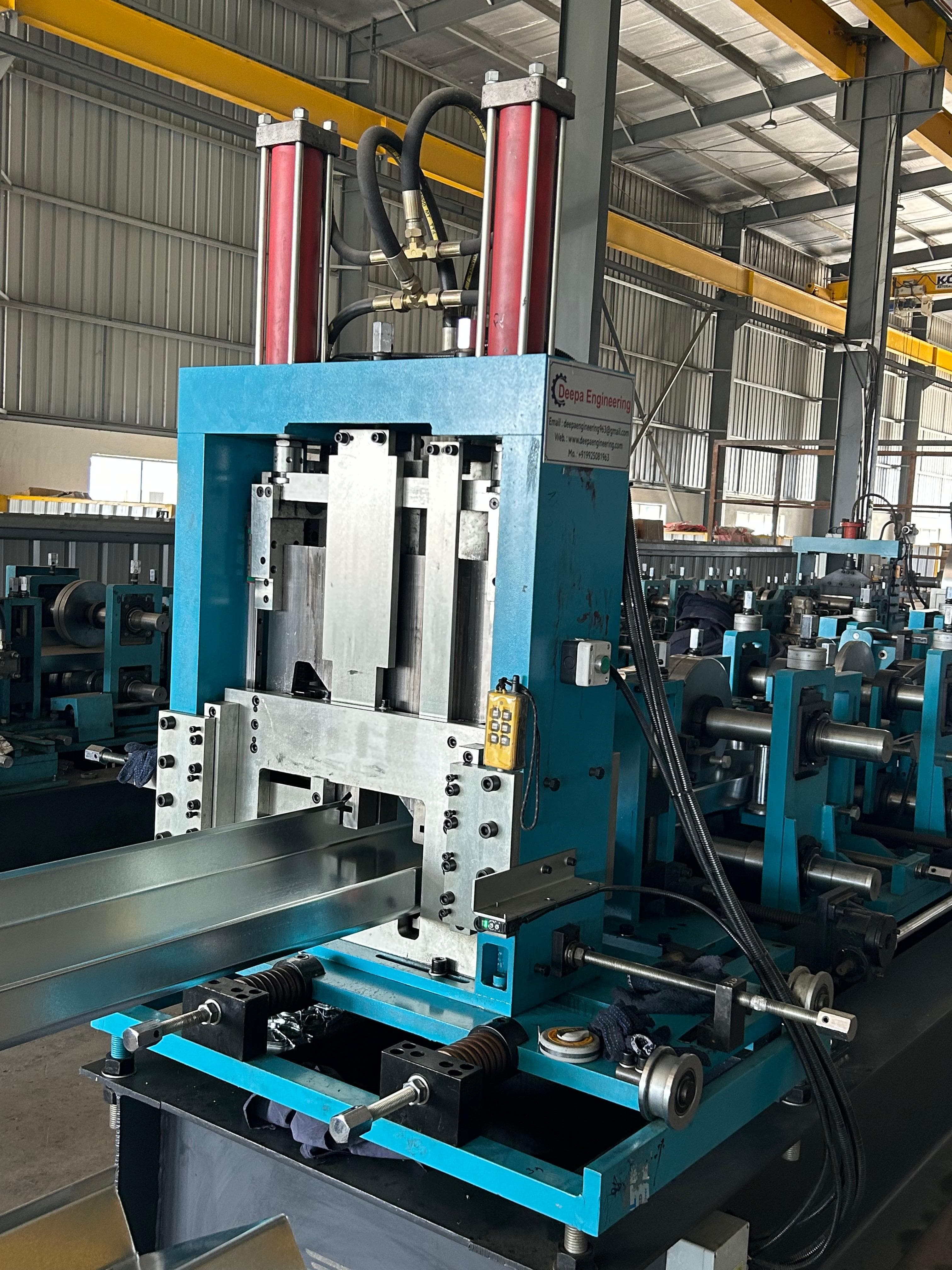

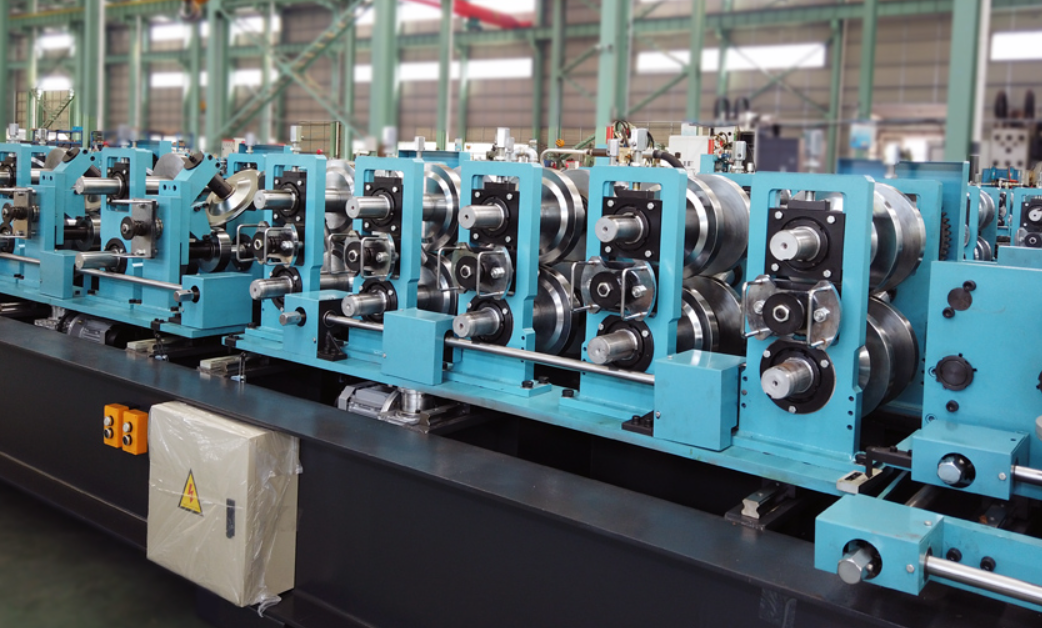

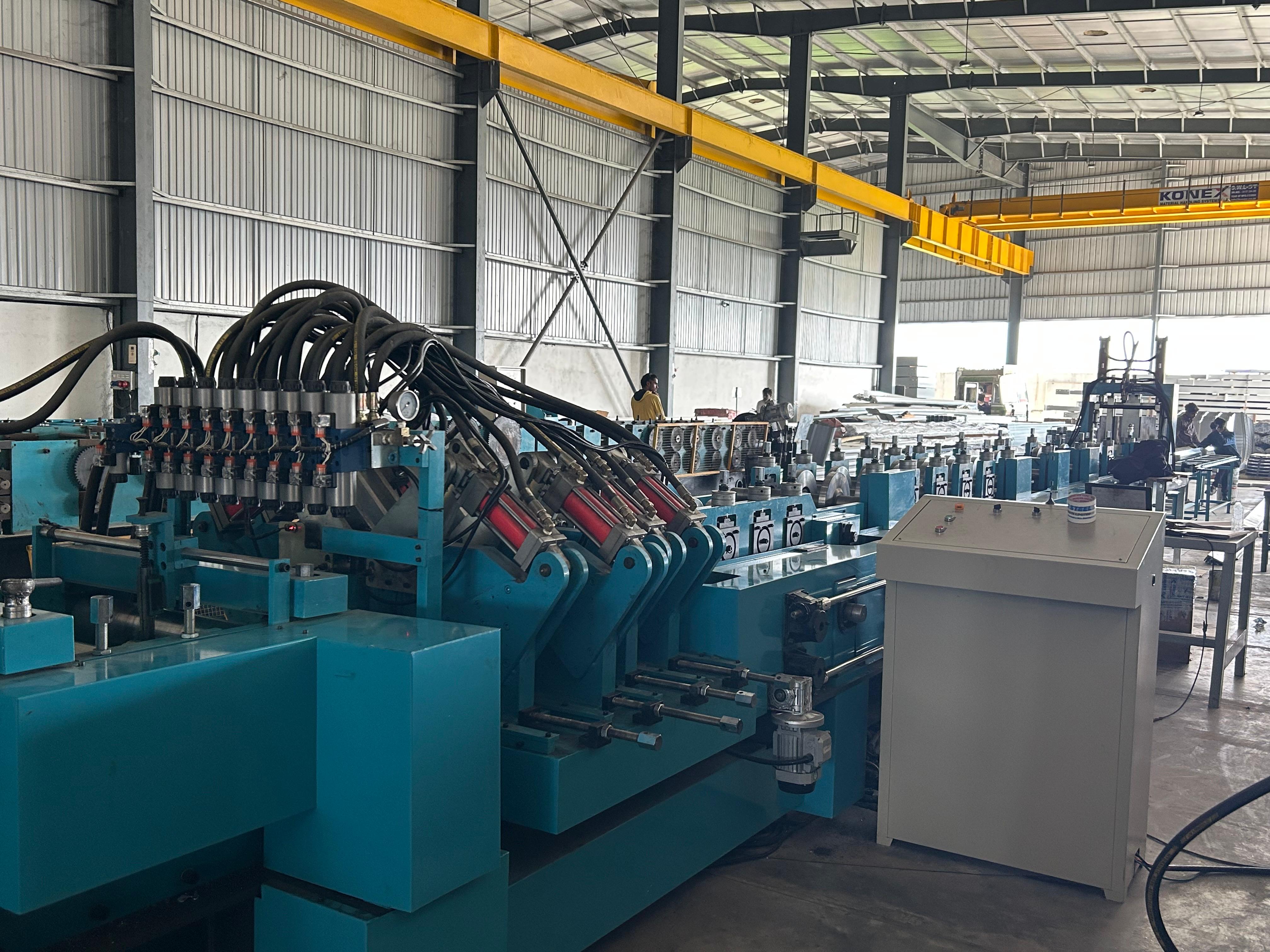

Angle Forming Machine
Model No. DE-C/Z-150/300
Key Features
- Versatile Production: The machine can produce both C and Z shaped purlins, offering flexibility in construction projects.

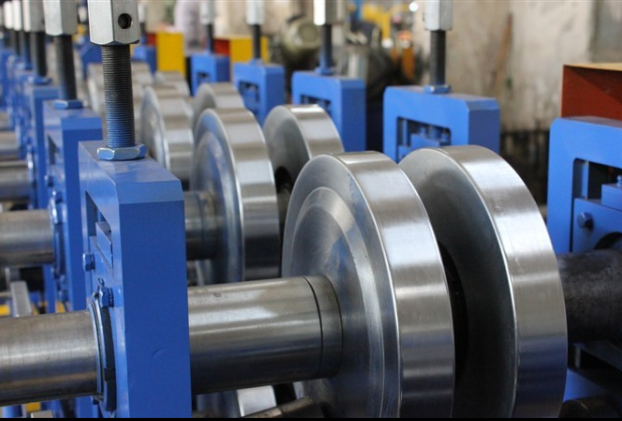

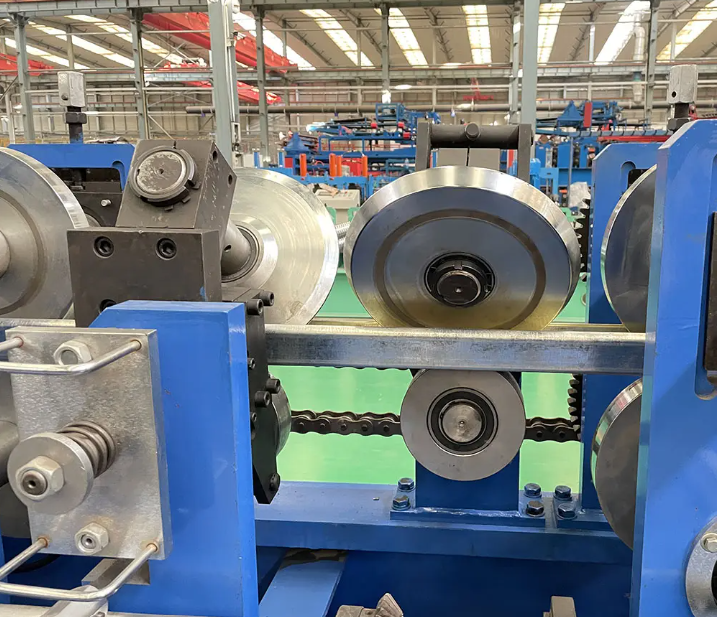

- Efficient Roll Forming: It uses a series of rollers to gradually bend a flat metal sheet into the desired C or Z shape.
- Adjustable Settings: The machine can be adjusted to produce purlins of different sizes and thicknesses.
- High-Speed Operation: C & Z purlin forming machines are designed for efficient, high-speed production.
- Durable Construction: These machines are built to withstand continuous operation and ensure long-term reliability.
Applications
- Industrial Buildings: For roofing and wall support in factories, warehouses, and other industrial structures.
- Commercial Buildings: For framing and roofing in offices, shopping centers, and other commercial buildings.
- Agricultural Buildings: For structural support in barns, sheds, and other agricultural structures.
Benefits
- Cost-Effective: Producing purlins in-house can be more cost-effective than purchasing them from a supplier.
- Customization: The ability to adjust the machine allows for the production of purlins to specific project requirements.
- Quality Control: Manufacturers can ensure the quality of the purlins by controlling the production process.
- Increased Efficiency: High-speed operation allows for efficient production of large quantities of purlins.
Specification
| Sr No | Product & Technical Description | Details |
|---|---|---|
| 1 | Thickness Range | 1.2 mm to 3.0 mm |
| 2 | Power | 20 KW |
| 3 | Machine overall size | L – 11m, W – 1m, H – 1.5m |
| 4 | Profile Types | Produces C, Z, or interchangeable profiles with adjustable dimensions. |
| 5 | Production Speed | 10–25 m/min |
| 6 | Hole Diameter Range | Ø14 TO Ø36mm |
| 7 | Panel, HMI & PLC | Make – Delta |
| 8 | Repeatability Accuracy | +/- 0.1 mm |
| 9 | Material | Processes galvanized steel, mild steel, or high-tensile steel. |
| 10 | Control System | Equipped with PLC-based control for precision and ease of operation. |
| 11 | Drive Type | Gearbox drive for reliable operation. |
