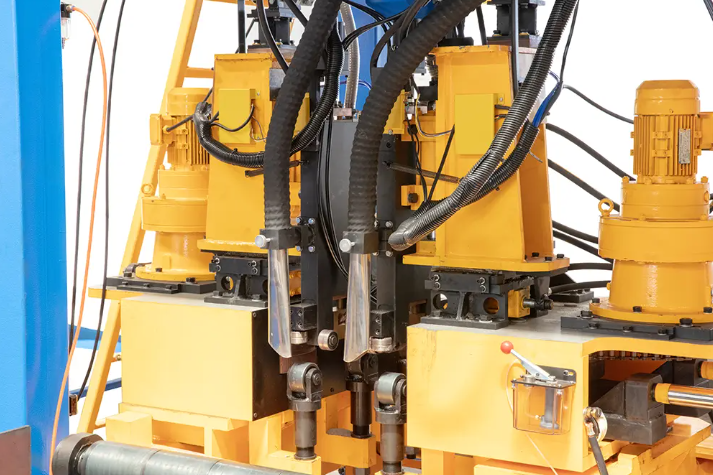

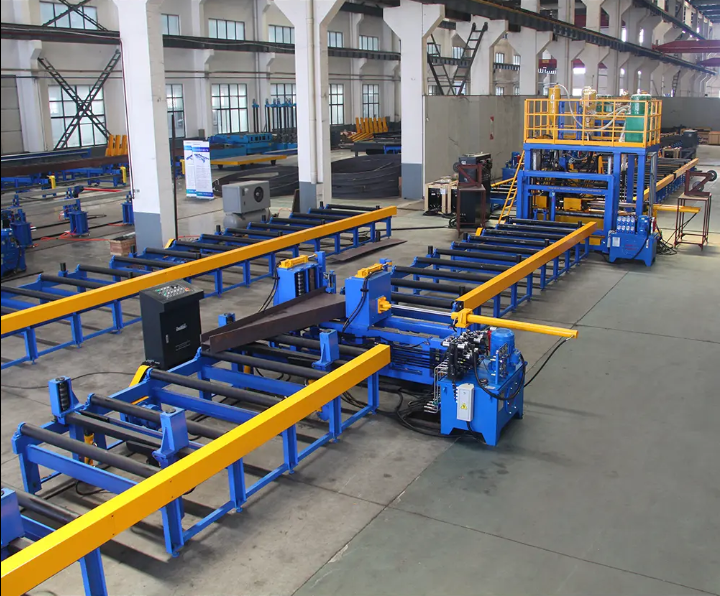

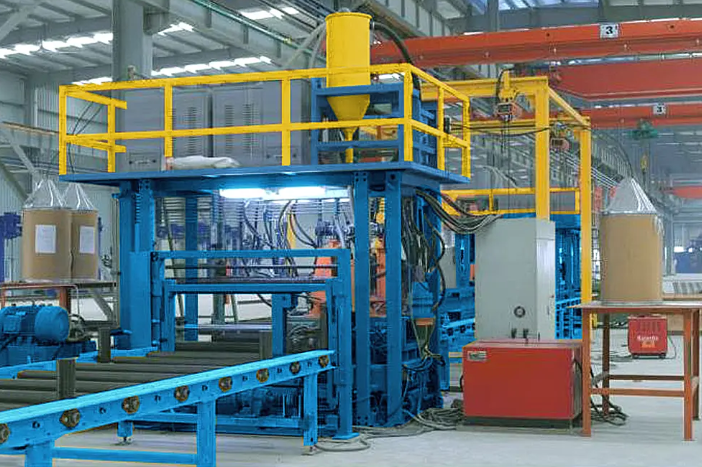

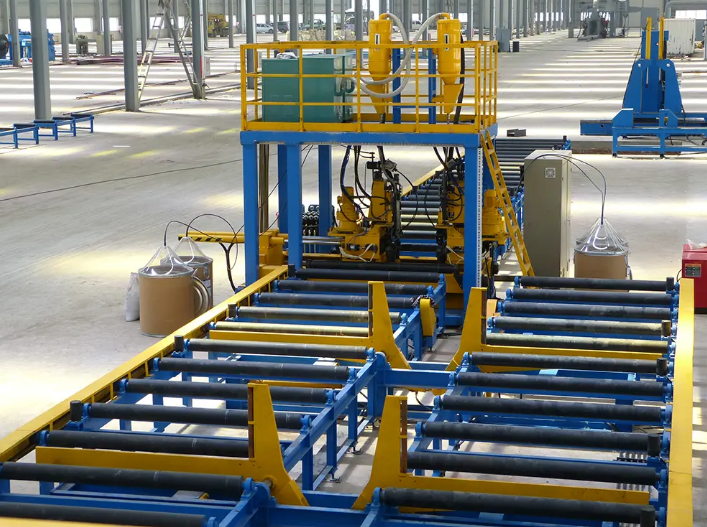

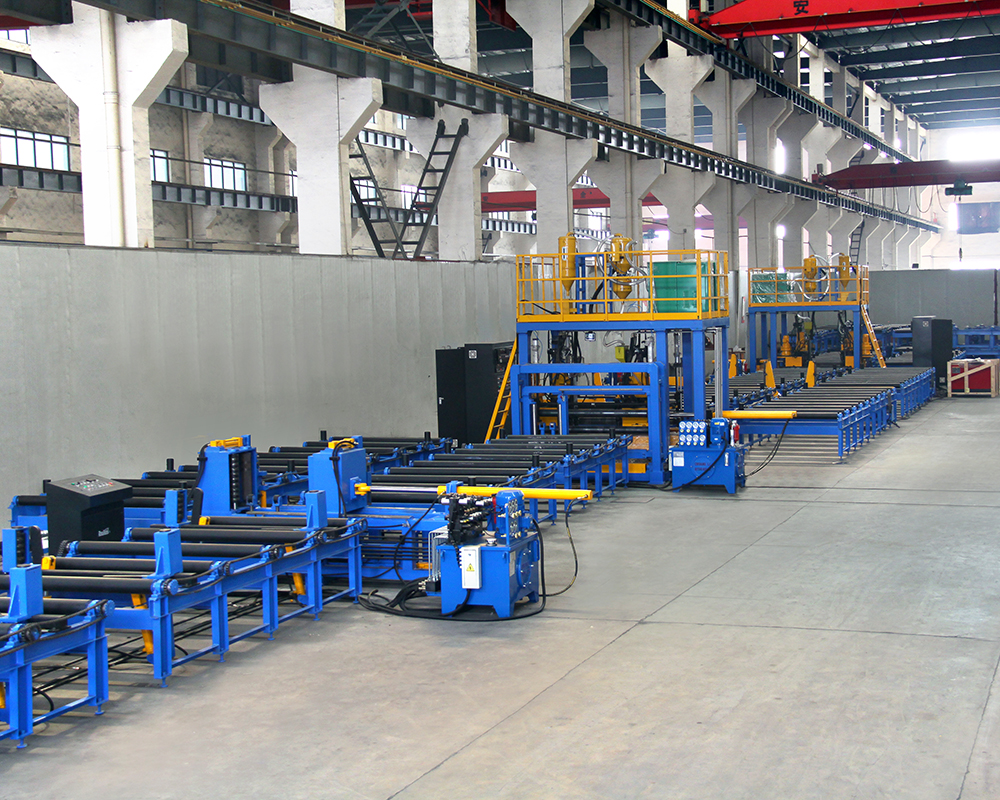

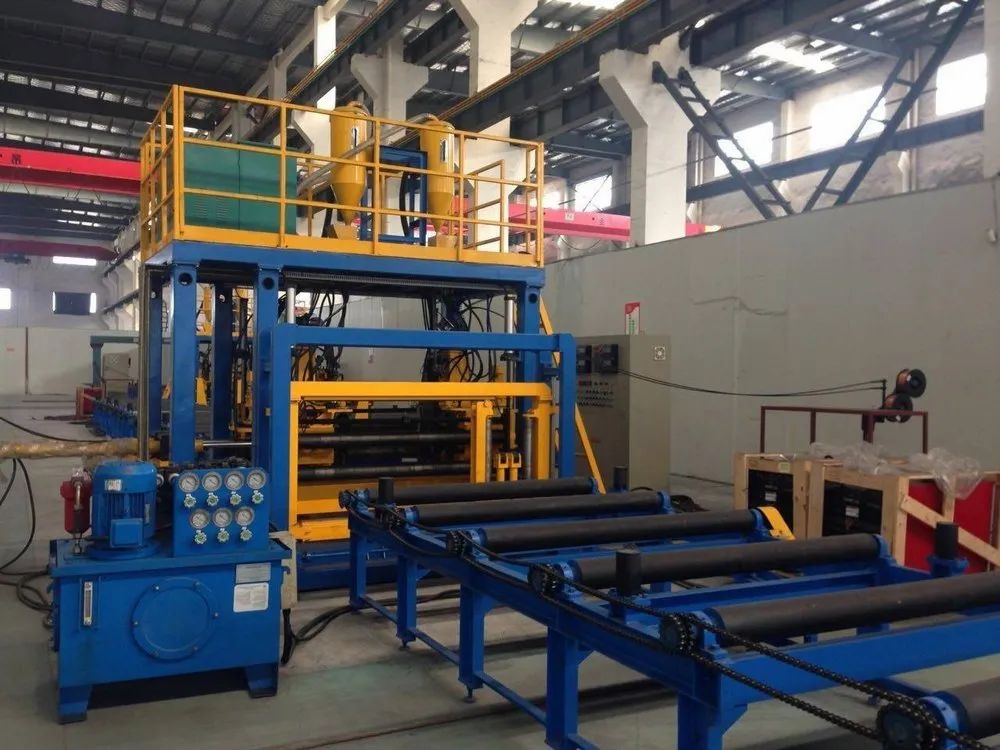

Pull Through Welding Machine
Model No. DE-PTW
Key Features
- Continuous Welding: Designed for long, uninterrupted welds to join metal sheets or components efficiently.
- Pull-Through Mechanism: The workpiece is pulled through the welding area at a controlled speed to ensure precision and consistency.
- High-Speed Operation: Optimized for fast welding while maintaining quality and accuracy.
- Automated Controls: Integrated with PLC or CNC systems for precise welding parameters and repeatability.
- Adjustable Welding Parameters: Allows customization of welding speed, voltage, current, and gas flow for different materials.
- Versatile Welding Methods: Supports MIG, TIG, or resistance welding based on application needs.
- Robust Frame: Built with a heavy-duty structure to withstand industrial environments and maintain stability.
- Cooling System: Includes water or air cooling mechanisms to prevent overheating during extended operations.
Applications
- Automotive: Used for welding chassis, exhaust systems, and structural components.
- Shipbuilding: Ensures seamless welding for large metal sheets and panels in ship construction.
- Metal Fabrication: Ideal for producing long welded seams in manufacturing industries.
- Aerospace: Ensures precision welding in aircraft panel assembly.
- Pipeline & Infrastructure: Utilized in welding large pipes, bridges, and structural frameworks.
Benefits
- High Efficiency: Reduces welding time and increases production speed.
- Consistent Weld Quality: Ensures uniform and defect-free welding across the entire workpiece.
- Reduced Manual Labor: Automation minimizes the need for skilled labor and human error.
- Cost-Effective: Optimized material usage and energy consumption lower operational costs.
- Enhanced Durability: Creates strong, reliable welds for long-lasting structural integrity.
- Safety Features: Equipped with shielding gas, cooling, and fume extraction to improve workplace safety.
Specification
| Sr No | Product & Technical Description | Details |
|---|---|---|
| 1 | Flange Width | 130 to 400mm |
| 2 | Flange Thickness | 5 to 30mm |
| 3 | Web Height | 200 to 1500mm |
| 4 | Web Thickness | 20mm Max |
| 5 | Conveyor Speed | 9.3 m/min |
| 6 | Welding Speed | 0.3–3 m/min |
| 7 | Longitudinal Guiding Accuracy | +/- 0.3mm / 3 Meter |
| 8 | Repeatability Accuracy | +/- 0.5mm |
| 9 | Material | Mild Steel |
| 10 | Total Power Consumption | 65 kW |
| 11 | Machine Overall Dimensions | L-40m, W-4m, H-4m |
| 12 | Controller | Schneider |
