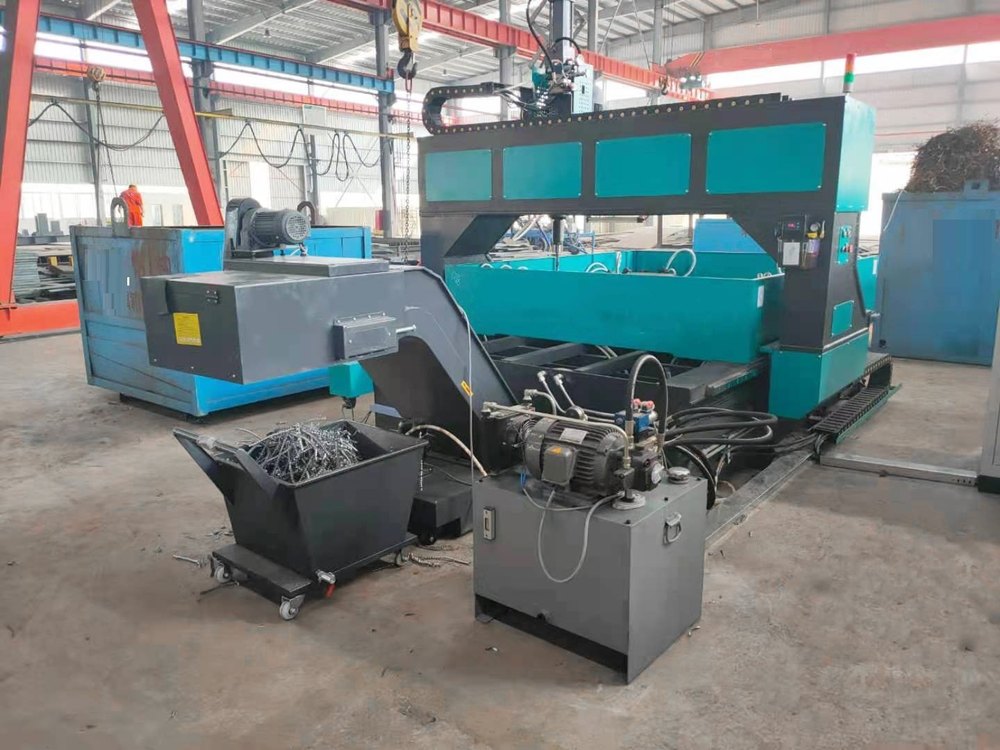

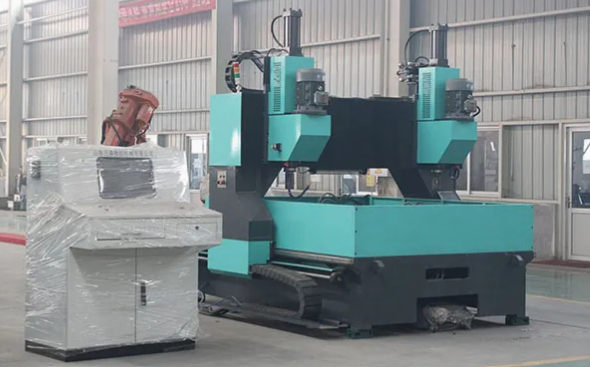

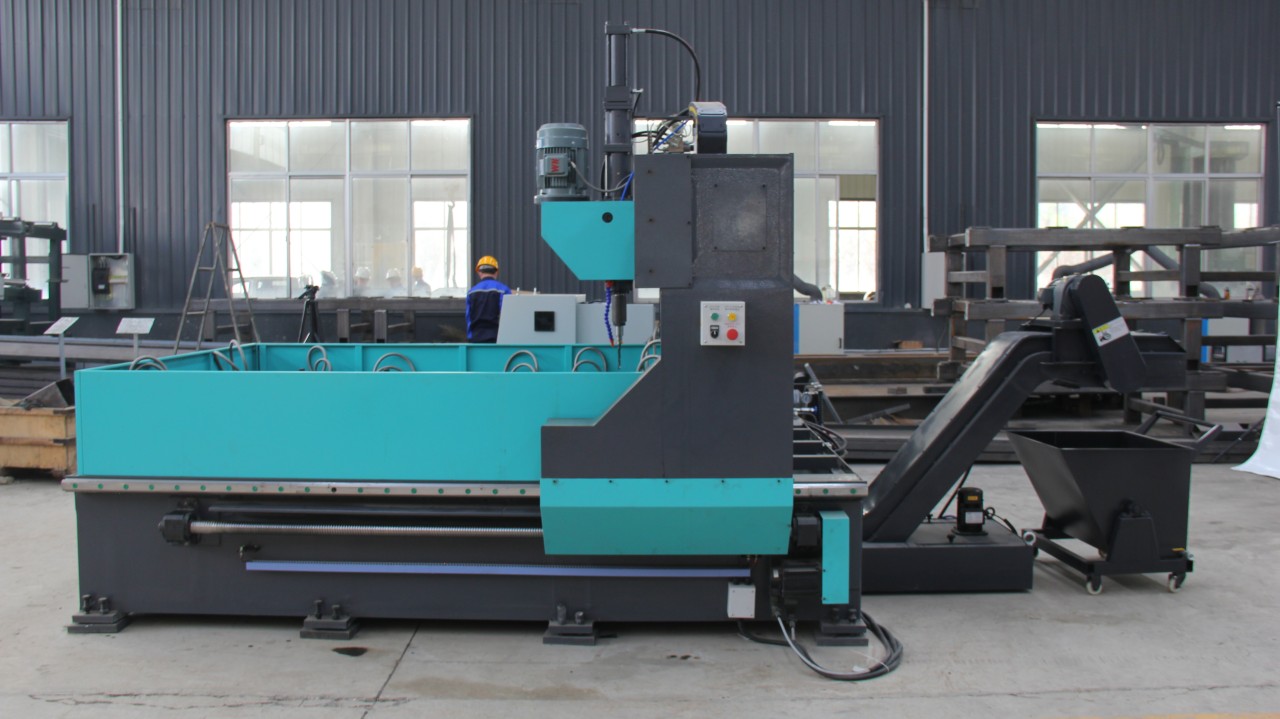

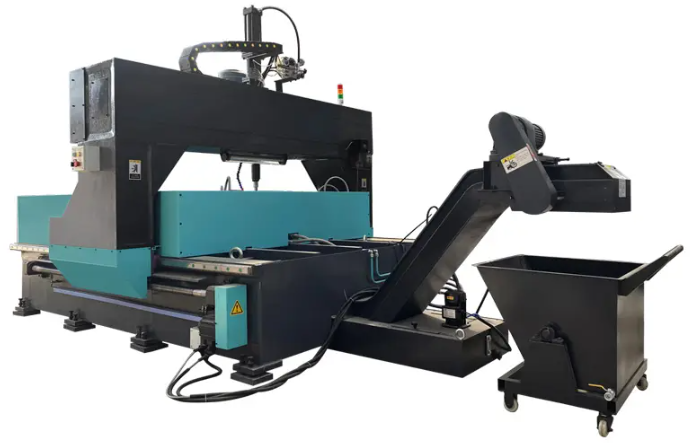

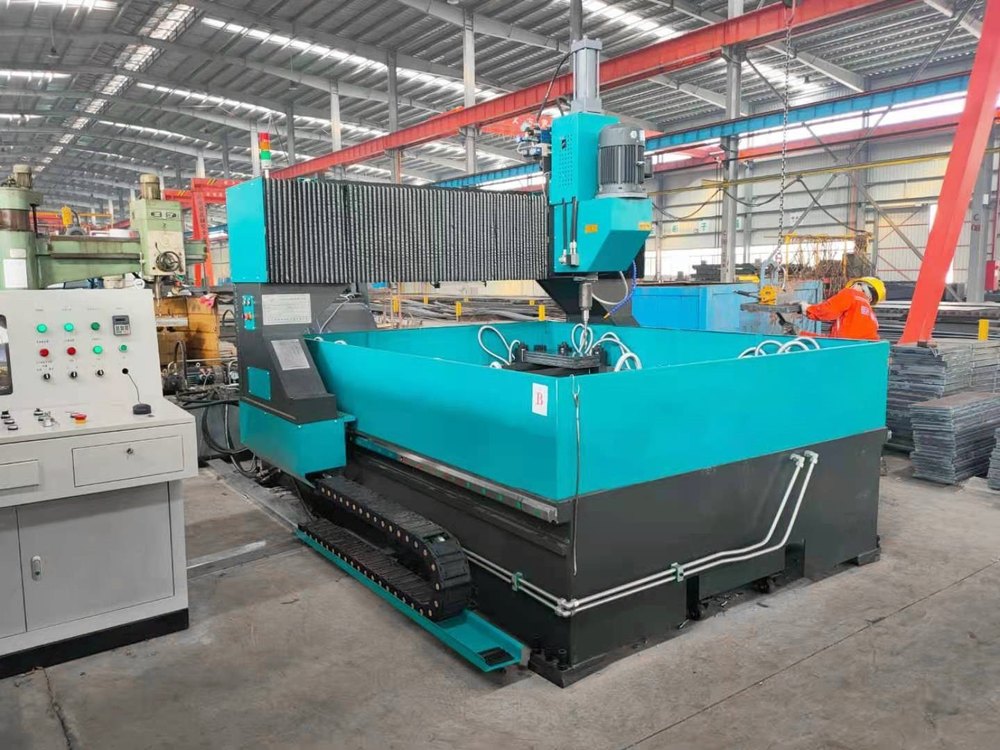

CNC Drilling Machine
Model No. DE-CNCD-100

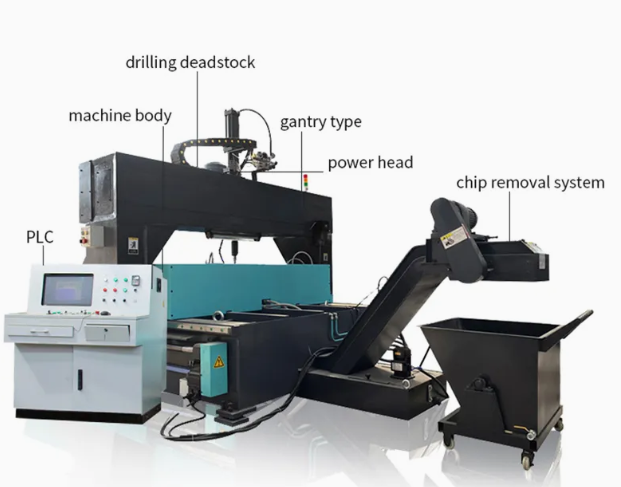

Key Features
- CNC Control: Automated precision drilling.
- Drill Bits: Supports various drill bit types.
- Spindle: High-speed rotation for accuracy.
- Workpiece Holding: Secure clamping system.
- Axis Movement: Controlled X, Y, and Z movement.
- Coolant System: Prevents overheating & extends tool life.
Applications
- Manufacturing
- Automotive
- Aerospace
- Electronics
- Construction
Benefits
- High Precision: Ensures accuracy and consistency.
- Time Efficiency: Automates drilling to reduce labor.
- Cost Savings: Minimizes material wastage.
- Durability: Designed for long operational life.
- Customizable: Adjustable for different materials & sizes.
Technical Specifications
| Feature | Specification |
|---|---|
| Plate Thickness Range | 100 mm MAX THICKNESS |
| Power | 7.5 KW |
| Machine overall size | L – 3.5m, W – 2.5m, H – 3m |
| Machine Input Power | AC 440 V (3 Phase) (+/-10%), 50 Hz |
| Plate size | 2000X1500 max |
| Hole Diameter Range | Ø14 TO Ø50mm |
| Panel, HMI & PLC | Make – Delta |
| Repeatability Accuracy | +/- 0.1 mm |
| Material to be punched | Mild Steel |
| Controller | Schneider |
| No. of clamp cylinders | 12 |
