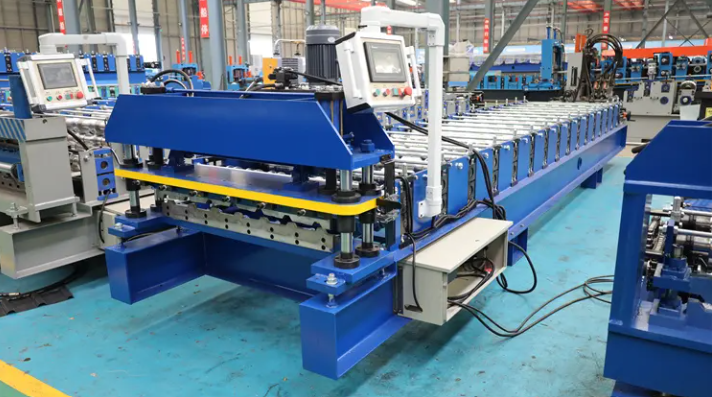

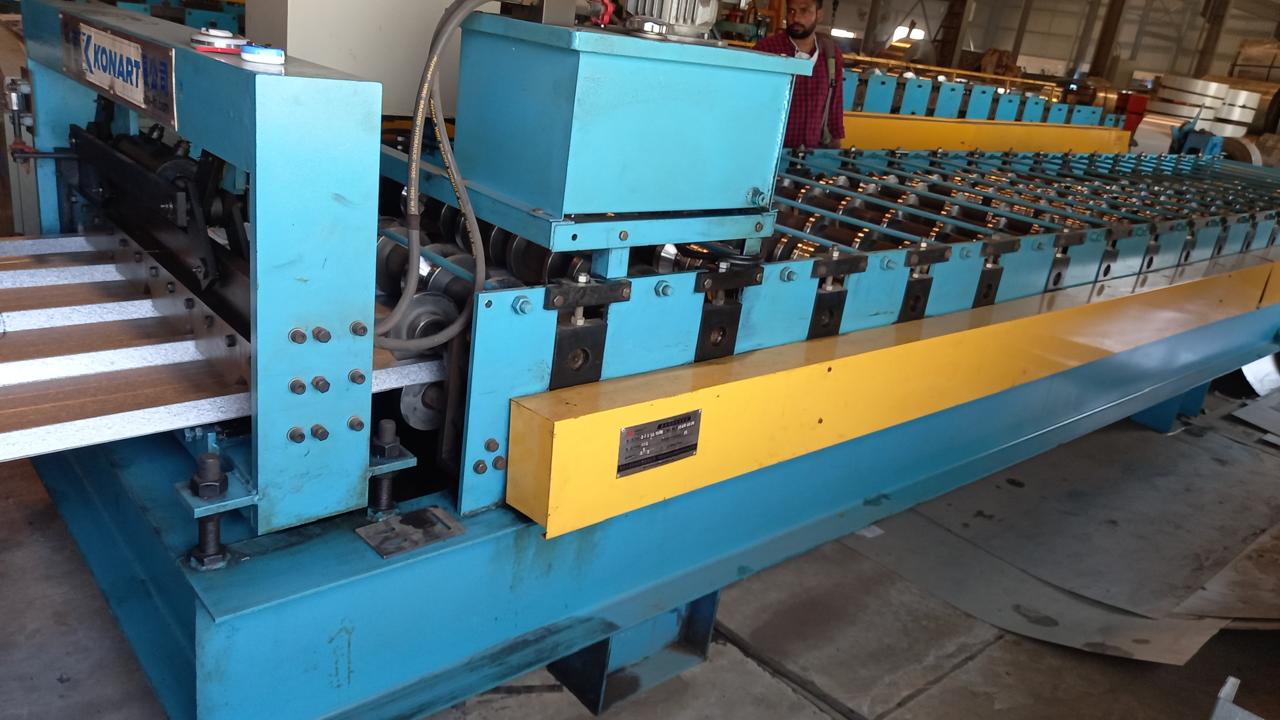

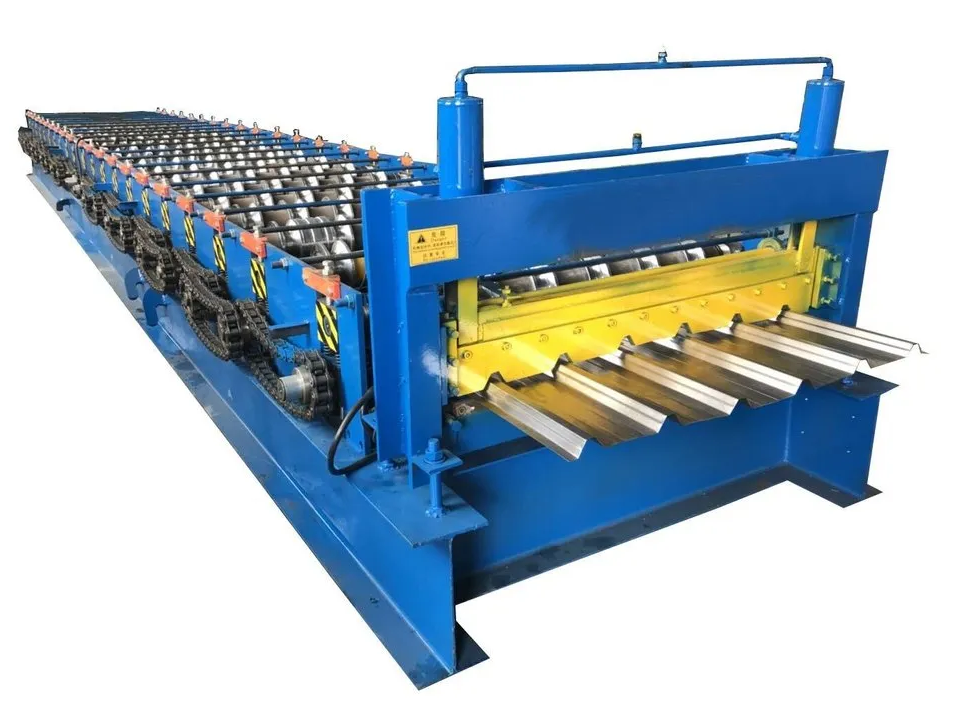

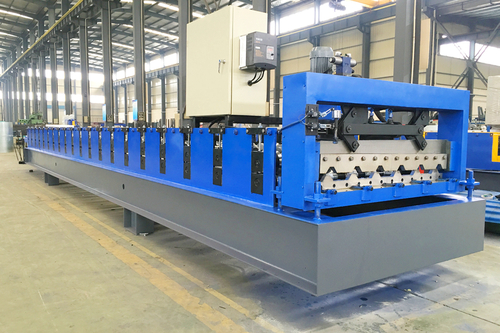

High Rib Sheet Roll Forming
Model No. DE-HRF-1220
Key Features
- Material Handling: The machine starts with a coil of sheet metal, which is fed into the machine.

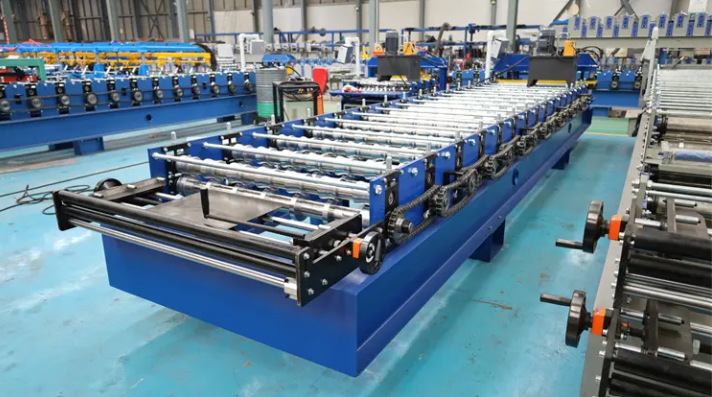

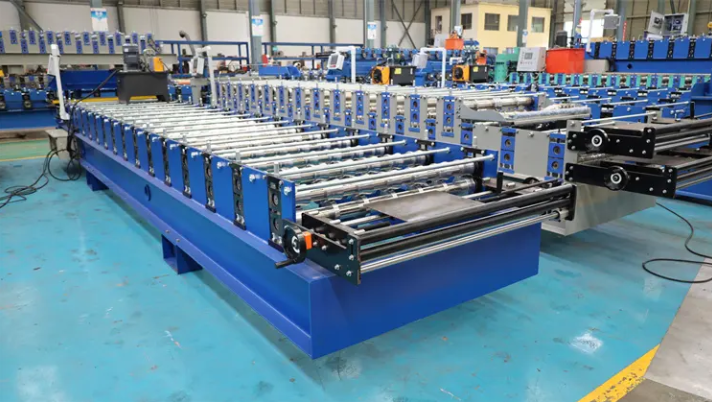

- Roll Forming: The core process involves a series of rollers that progressively bend the metal sheet into the desired high rib profile.

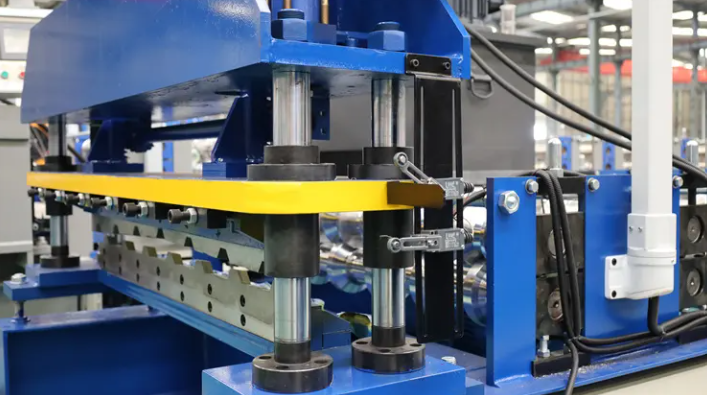

- Cutting: Once the sheet is formed, a cutting mechanism cuts it to the desired length.
- Customization: Many machines allow for adjustments to produce different sizes and shapes of high rib profiles.
Applications
- Roofing: High rib sheets are a popular choice for roofing due to their strength and ability to withstand harsh weather conditions.
- Wall Cladding: Used for wall cladding, providing a durable and aesthetically pleasing exterior finish.
- Industrial Buildings: Commonly used in industrial buildings due to their strength and cost-effectiveness.
- Agricultural Buildings: Used in agricultural buildings for roofing and walling.
Benefits
- Efficiency: Quickly and efficiently produces large quantities of sheets, saving time and labor.
- Accuracy: Ensures consistent and accurate sheet dimensions for a high-quality finished product.
- Versatility: Adjustable to produce different sizes and shapes of high rib profiles.
Specification
| Sr No | Product & Technical Description | Details |
|---|---|---|
| 1 | Plate Thickness Range | 0.5–0.8 mm |
| 2 | Power | 10 KW |
| 3 | Machine overall size | L – 10.5m, W – 1.7m, H – 1.3m |
| 4 | Machine Input Power | AC 440 V (3 Phase) (+/-10%), 50 Hz |
| 5 | Sheet blank size | 1220 to 1440mm MAX |
| 6 | No. of stages | 12 to 15 |
| 7 | Panel, HMI & PLC | Make – Delta |
| 8 | Repeatability Accuracy | +/- 0.1 mm |
| 9 | Material to be punched | Mild Steel, Galvanized Steel, Pre-coated sheet |
| 10 | Controller | Schneider |
| 11 | Model No | DE-HRF-1220 |
